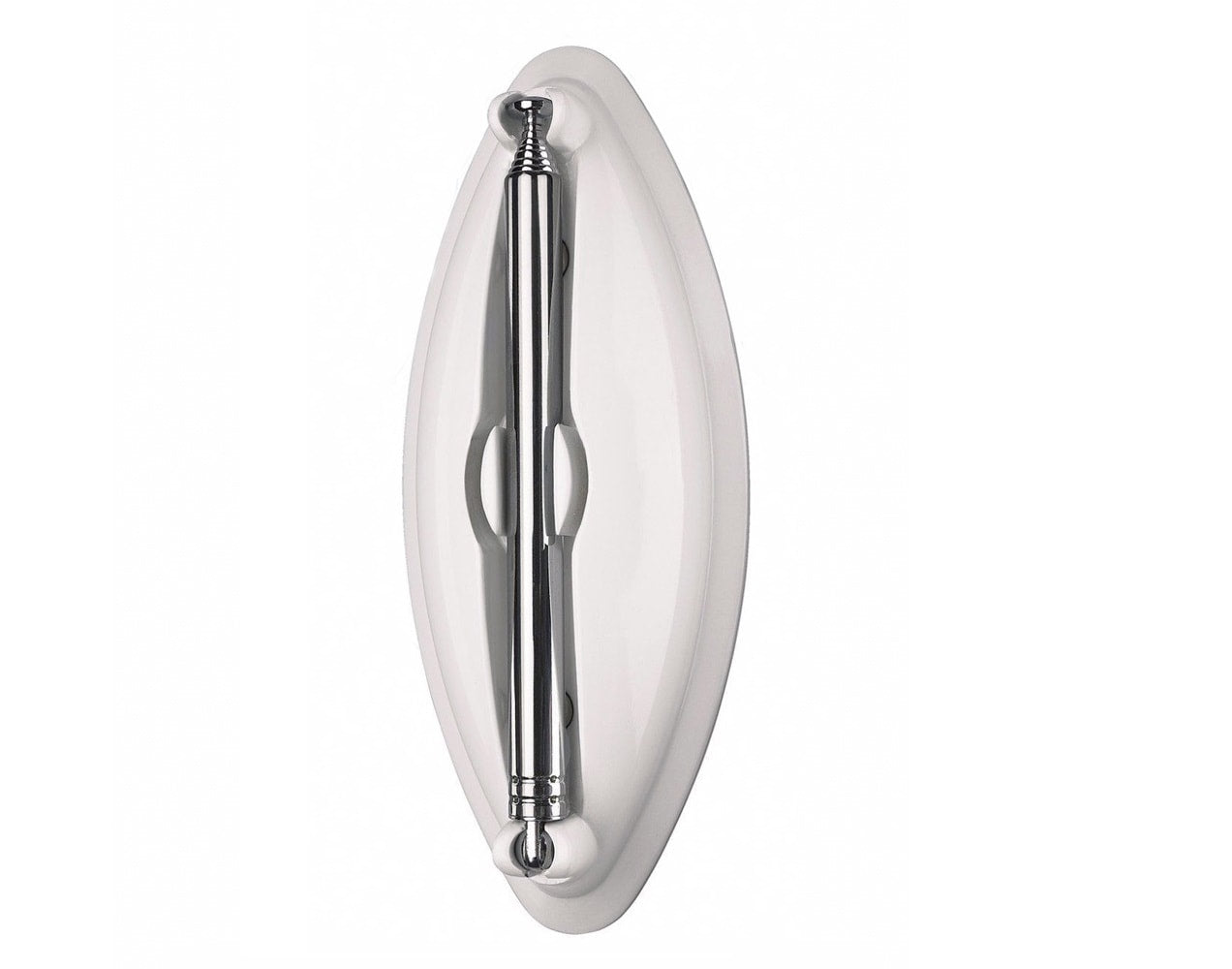

Vision Plus Radio Aerial

Designed for external use, this radio antenna can be installed on a vertical surface such as the side of a caravan or motorhome. The base is manufactured in high quality UV stabilised ABS plastic for external use. The compact discrete profile with a depth of only 29mm ensures minimal obstruction. The electronic amplifier is designed for optimum performance whilst receiving all FM and AM (MW and LW) radio transmissions. The telescopic antenna extends to 725mm, the optimum for radio reception, which can also be adjusted in length to fine tune reception when changing to more difficult to receive channels.

Features/Specifications:

• Frequency range: FM 88-108Mhz AM (LW&MW): 100 Khz-1.6 Mhz
• Amplifier Gain FM: 12 db
• Noise figure: 3.8 db
• Amplifier Gain AM: Unity. Hi Z in. Low Z out
• Output Impedence: 75 ohms
• Output FM: 100 dbuv
• Output AM: 103 dbuv
• Power Supply: 12-15V DC
• Dimensions (mm): H148xW60xD29
• Telescopic extension (mm): 725, 8 section
