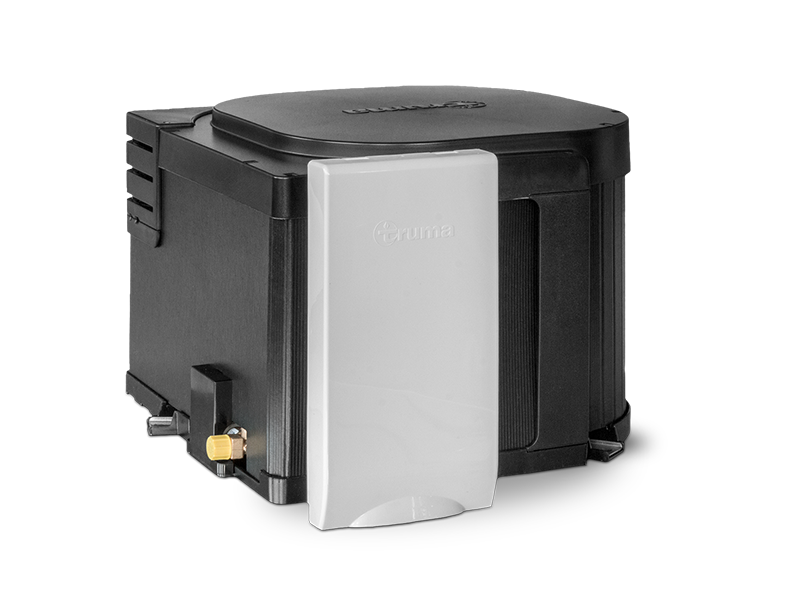

Truma 10L Water Heater, Gas/240V

PLEASE ENQUIRE ABOUT AVAILABILITY BEFORE ORDERING

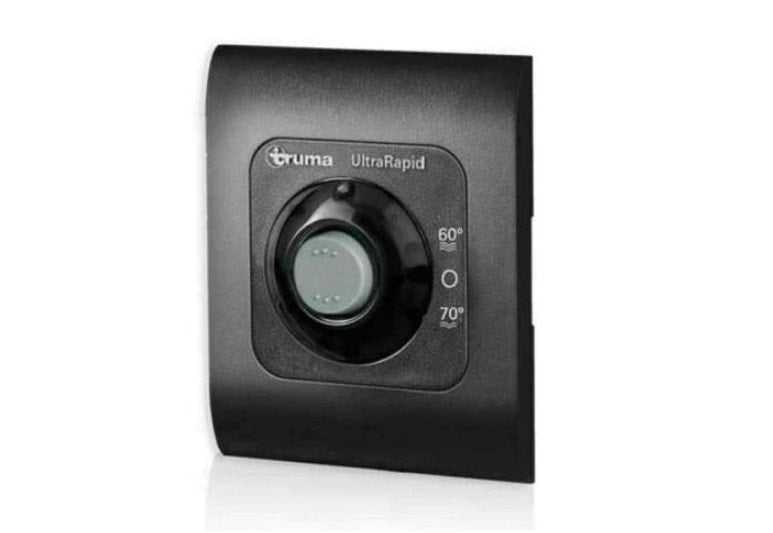

The highly durable 10 Litre stainless steel Truma water heater provides a reliable supply of hot water in leisure vehicles. It has a powerful gas burner and also an electric heating element that heats the water even faster. Can run on gas and 240V at the same time, this encourages short heating times when demand is higher. Reducing heating time from 31 minutes in gas mode to 16 minutes in mixed mode when heating water from 15°C to 70°C. Set the desired water temperature anywhere between 60°C and 70°C with the included control unit. The electronic controls and the pressure relief valve provide maximum safety. Thermostat controlled shut off and reignition facilities save valuable energy and the excellent insulation ensures that almost no heat is lost. If the water temperature drops, the electronics reignite automatically so the water is continuously reheated when the boiler is running.

Features:

• Modern design with black housing and control panel
• Insulation prevents heat loss
• Stainless steel water tank, no anode required
• Can run on gas and 240V at the same time for faster heat up time
• Option to run on gas only, 240V or mixed mode
• Low gas consumption with high efficiency
• Space saving dimensions
• Safety ensured with electronic control components and over pressure valve
• High pressure resistance (all submersible and pressure pumps up to 2.8 bar can be used)
• Pump pressure must no exceed 40psi
• Supplied with water connection kit to suit 12mm John Guest push fit plumbing

Specifications:

• Brand: Truma
• Capacity: 10 Litres
• Energy sources: LPG
• Power supply: 230V AC
• Ignition: 12V DC
• Gas consumption: 120 g/h
• Output of electrical heating element: 850/1300W
• Power consumption at 230V: 850W 3.7A / 1300W 5.7A
• Power consumption at 12V: ignition 0.16A, heating 0.12A, standby 0.05A
• Temperature range: 60-70°C
• Approx heating time (from 15 to 70°C): Mixed 16min, 240V 29min, Gas 31min
• Pump pressure (max): 40 psi, 2.8 bar
• System pressure (max): 4.5 bar
• Dimensions (mm): D350 x W350 x H261
• Weight (empty): approx 7.4 Kg

Please note: Maximum water intake pressure is 40 psi, for plumbing systems with a higher pressure than this, a reducing valve is supplied and must be fitted in line to ensure the supply water pressure is reduced sufficiently.
